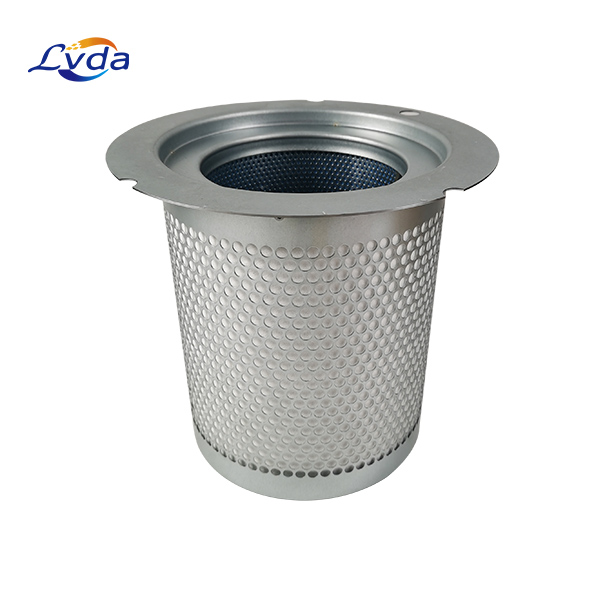

Atlas Copco Oil Separators

The oil separator 2901920040 in an air compressor plays a crucial role in the operation of the equipment. Its main function is to remove oil from the compressed air, ensuring that only clean, dry air is delivered to the system or application. The primary function of an oil separator is to extract oil particles from the air stream. By removing oil, the separator protects downstream components like filters, valves, and end-use equipment from oil contamination. And this helps to improve working efficiency of the system.

Max working temperature: 120℃

Limited Data: 0.5-60 m³/min

Working pressure: 0.7Mpa~1.0Mpa

Recommended time: 4000 hours

Material: HV Fiber glass

Single package size: 22*22*28 cm

Single gross weight: 4.24 kg

Package: Carton box

Lead time: 7 days
