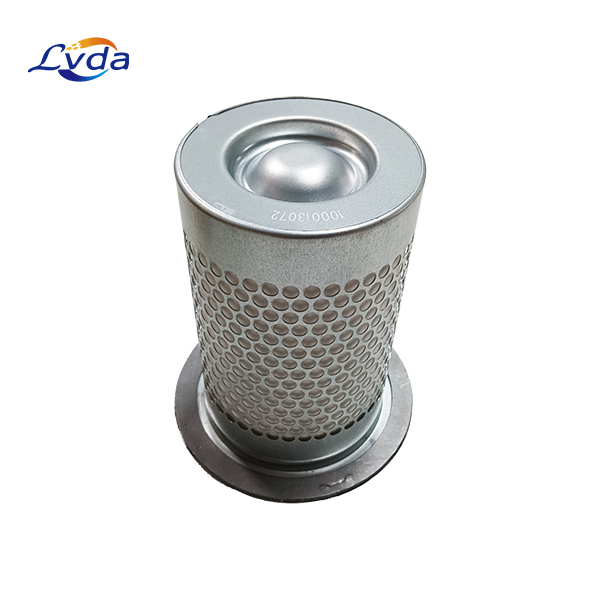

4900051531 Oil Separator

Model : 4900051531

Cross Reference:6.1968.0, DB2002, NS 000220

Type : Other Oil Separators

Replacement for : MANN

Application : Screw air compressor

Oil Content : <3 ppm

Filtration Accuracy : <5 μm

Material : Advanced fiber glass

Working pressure : 0.8 Mpa

Service life : 4200 Hours

This oil separator 4900051531, a critical component in air compressor systems, is designed to efficiently remove oil from the compressed air stream.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

This oil separator 4900051531, a critical component in air compressor systems, is designed to efficiently remove oil from the compressed air stream. It ensures that the air exiting the compressor is as clean and dry as possible, making it suitable for various applications that require oil-free air. The oil separator works by utilizing a coalescing filter element that captures oil droplets, allowing them to coalesce and drain back into the oil reservoir. This process significantly reduces the amount of oil carried over into the downstream system.

It is also designed for quick and easy installation. Their user-friendly design also facilitates hassle-free maintenance, saving both time and resources.
