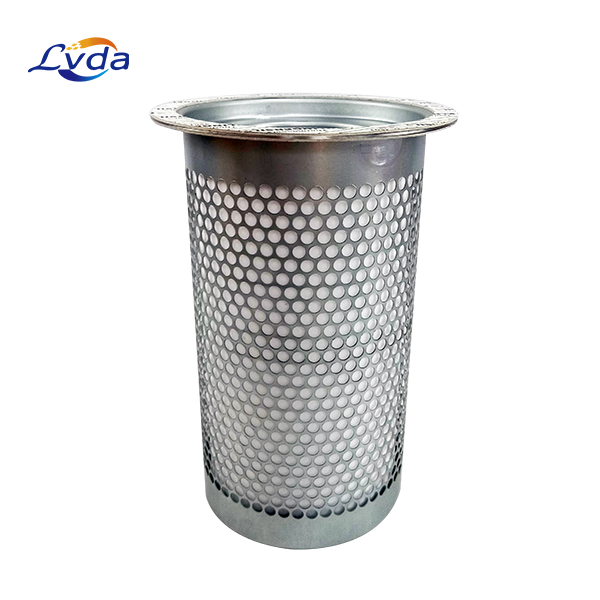

93568269 Oil Separator

Model : 93568269

Cross Reference:4900051191, DB2027, NS 002720

Type : Other Oil Separators

Replacement for : Ingersoll-Rand

Main Application : Screw air compressor

Oil Content : <3 ppm

Filtration Accuracy : <5 μm

Material : Advanced fiber glass

Pressure Rating : 0.8 Mpa

Working life : 4200 Hours

The oil separator 93568269 works by causing small oil droplets to merge into larger ones, which are then more easily trapped and removed from the air stream.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

The separator 93568269 works by causing small oil droplets to merge into larger ones, which are then more easily trapped and removed from the air stream. It is designed to remove oil aerosols and particles from the air stream before it leaves the compressor. This is important for maintaining the quality of compressed air and preventing oil contamination in the tools, machinery, or processes that use the compressed air.

This factory OEM design oil separator is typically highly efficient, utilizing advanced filtration technologies to ensure that the smallest oil particles are captured. Made from materials that can withstand the harsh environment inside a compressor, it is built to last under continuous operation.
