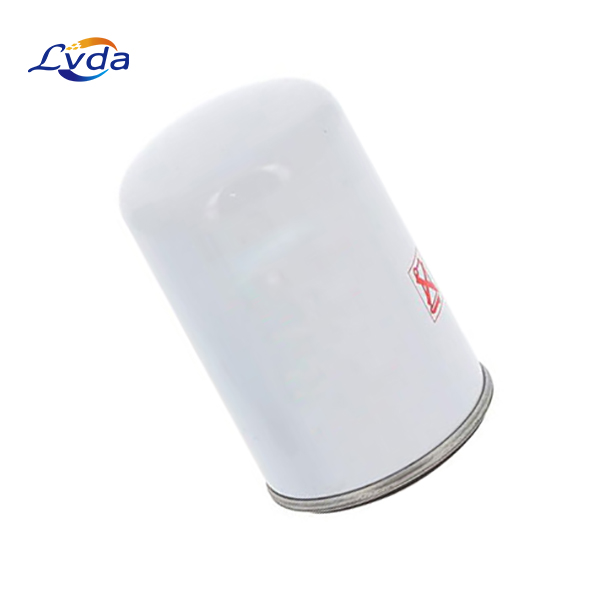

LB719/3 Oil Separation Filter

Model : LB719/3

Type : Other Oil Separators

Replacement for : MANN

Application : Screw air compressor

Burst Pressure (BURST-P) : 23 bar

Body Height (H-0) : 126 mm

Height-2 (H-2) : 2 mm

Total Height (H-TOTAL) : 128 mm

Product Net Weight (WEIGHT) : 0.55KG

This oil separation filter element LB719/3 is made of stainless steel sintered mesh. The mesh structure and mesh number are cross-woven to form a porous structure.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

This oil separation filter element LB719/3 is made of stainless steel sintered mesh. The mesh structure and mesh number are cross-woven to form a porous structure. This can effectively filter and separate the oil droplets and particles brought by the compressor during operation to ensure that the liquid remains clean.

Maintenance and replacement

Easy maintenance: During maintenance, you only need to remove 3 screws to pull out the oil filter.

Replacement cycle: It is usually recommended to replace it every 3500 hours.

Replacement precautions: When the pressure difference between the two ends of the oil and gas separation filter reaches 0.15MPa, it should be replaced; when the pressure difference is 0, it indicates that the filter element is faulty or the airflow is short-circuited, and it should be replaced immediately.
