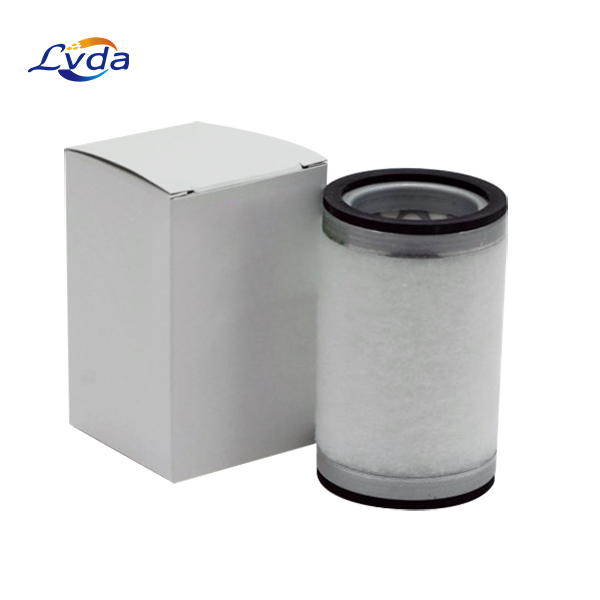

LE3002 Oil Separator

Model : LE3002

Type : Other Oil Separators

Replacement for : MANN

Body Height (H-0) : 103 mm

Total Height (H-TOTAL) : 103 mm

Product Net Weight (WEIGHT) : 0.58 Kg

Largest Inner Diameter (Ø IN-MAX) : 43 mm

Service Life : 4000 Hours

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

The working principle of this oil separator filter LE3002 is "polymerization". The micron-level glass fiber layer separates the oil droplets from the compressed air, and then aggregates them into larger oil droplets and returns them to the compressor oil circuit. This separation process can reach the submicron level, thereby ensuring that the oil consumption of the compressor and the amount of oil entering the compressed air network are small. However, oil vapor and oil smoke cannot be separated. This oil-gas separation element can be used for all standard compressor lubricants, whether mineral oil, synthetic oil or semi-synthetic oil.

Application field

Industrial hydraulic system: used for oil and dirt filtration in industrial hydraulic systems to ensure the cleanliness of hydraulic oil.

Transportation field: Oil filter elements are required for engines and hydraulic systems of vehicles such as automobiles, motorcycles, ships, and airplanes.
