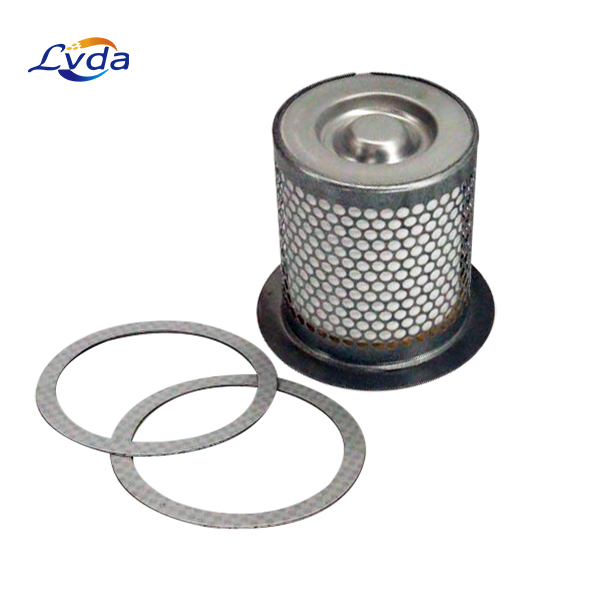

LE7004x Air Oil Separator

Model : LE7004x

Type : Other Oil Separators

Replacement for : MANN

Element Collapse pressure (COL-P) : 5 bar

Permissible Flow (FLOW) : 210 m3/h

Body Height (H-0) : 160.5 mm

Product Net Weight (WEIGHT) : 1.45 Kg

Largest Inner Diameter (Ø IN-MAX) : 76 mm

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

This oil separation filter LE7004x filter element is made of high-quality materials and can maintain its shape under high pressure and maintain the maximum surface area, thereby improving performance. Reduce maintenance costs, the oil filter element has a long service life and high dirt holding capacity, reducing the replacement frequency and maintenance costs. During maintenance, you only need to remove 3 screws to pull out the oil filter. When the pressure difference between the two ends of the oil-gas separation filter element reaches 0.15MPa, it should be replaced; when the pressure difference is 0, it indicates that the filter element is faulty or the airflow has been short-circuited, and it should be replaced immediately.

Application fields

Transportation field: The engines and hydraulic systems of vehicles such as automobiles, motorcycles, ships, and airplanes all need to use oil filters.

Petroleum and chemical industry: In the process of petroleum and chemical production, it is used to separate oil droplets from oil and gas mixture to ensure the smooth progress of the process and product quality.
